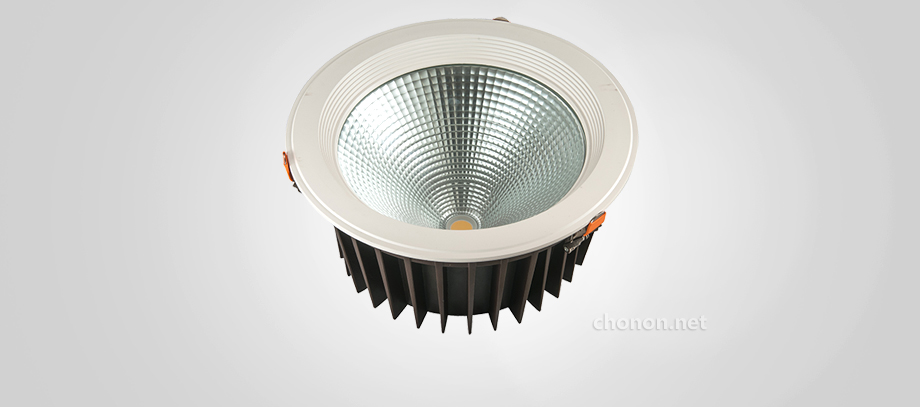

LED downlight-F Series
Features:

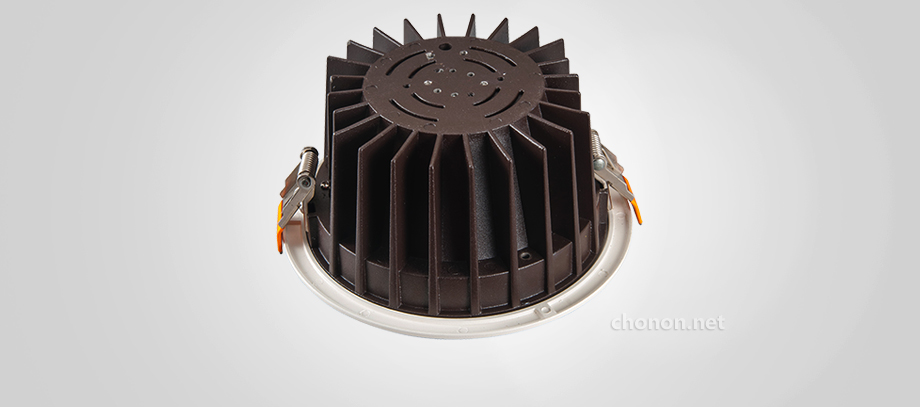

●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life.
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code
|
Diameter Ø (mm)
|
Cutout Ø (mm)
|
Height (mm)
|
Wattage
|
Lumen @4000K (lm)
|
CCT (K)
|
CRI
|
Power Factor
|
Carton Size (cm)
|
Qty/ctn (pcs)
|
|
MQT-LED-0408T
|
141
|
124
|
66
|
8w
|
640
|
3000-6500K
|
>80
|
>0.9
|
48x48x35
|
36
|
|
MQT-LED-0515T
|
157
|
142
|
75
|
15w
|
1300
|
3000-6500K
|
>80
|
>0.9
|
52.5x52.5x37
|
30
|
|
MQT-LED-0625T
|
184
|
167
|
88
|
25w
|
2200
|
3000-6500K
|
>80
|
>0.9
|
60x40x33
|
18
|
|
MQT-LED-0835T
|
225
|
207
|
110
|
35w
|
3100
|
3000-6500K
|
>80
|
>0.9
|
48x48x39
|
12
|
Other wattages and lumens are available on request.
