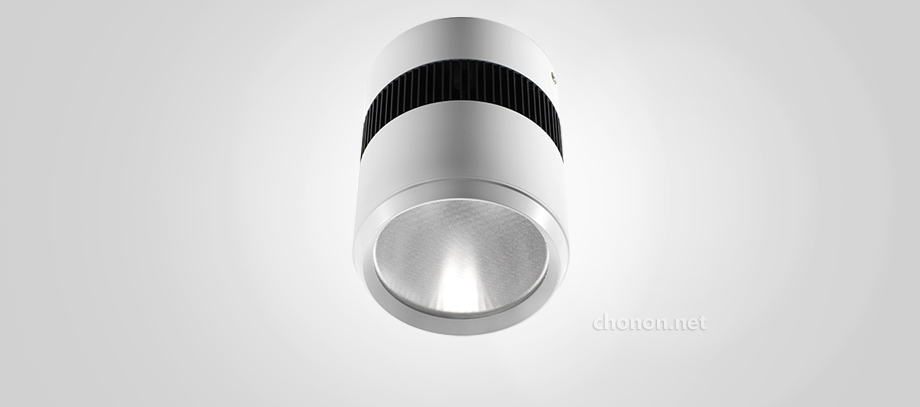

LED downlight-Q Series/Surface mounted
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●COB options: Citizen, Cree and Epistar
●Drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective,
Installation:
Surface mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
Features:
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●COB options: Citizen, Cree and Epistar
●Drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective,
Installation:
Surface mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter Ø (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0310Q |
90 |
128 |
10w |
880 |
3000-6500K |
>80 |
>0.9 |
42x42x29 |
24 |
|
MQT-LED-0415Q |
115 |
135 |
15w |
1200 |
3000-6500K |
>80 |
>0.9 |
48x48x32 |
24 |
|
MQT-LED-0520Q |
150 |
159 |
20W |
1700 |
3000-6500K |
>80 |
>0.9 |
50x30x39 |
12 |
Other wattages and lumensare available on request.
