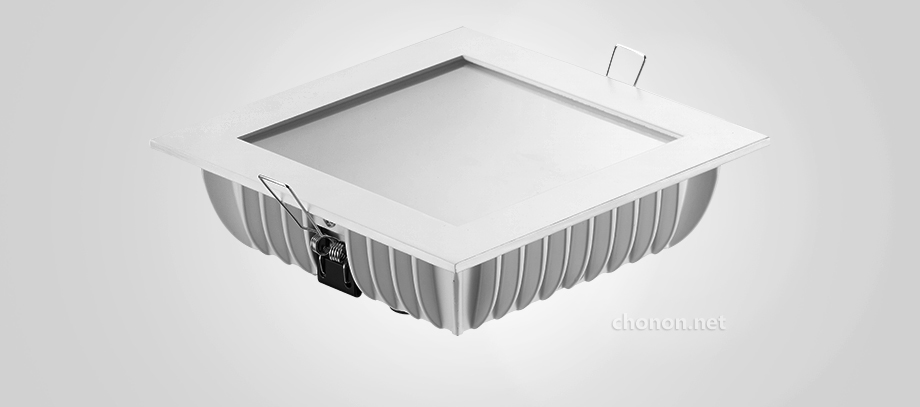

LED downlight-H Series
Features:
●Die-cast square aluminium body ensures excellent heat dissipation
●with glass or opal diffuser
●Highly reflective white paper inside to create high efficiency
●LED chips options: Samsung, Epistar
●Low profile in the ceiling with remote driver
●CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
Specification:
Features:
●Die-cast square aluminium body ensures excellent heat dissipation
●with glass or opal diffuser
●Highly reflective white paper inside to create high efficiency
●LED chips options: Samsung, Epistar
●Low profile in the ceiling with remote driver
●CRI>80
●Superior thermal performance, leading to a longer life
●high performance and Cost effective
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
| Photometric: | Drawing: | |
|
|
|
|
Product Code |
Diameter Ø (mm) |
Cutout Ø (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0518H |
160x160 |
142x142 |
51 |
18w |
1620 |
3000-6500K |
>80 |
>0.9 |
56x38x19.5 |
12 |
|
MQT-LED-0625H |
194x194 |
165x165 |
58 |
30w |
2700 |
3000-6500K |
>80 |
>0.9 |
49x49x31 |
12 |
Other wattages and lumens are available on request.
