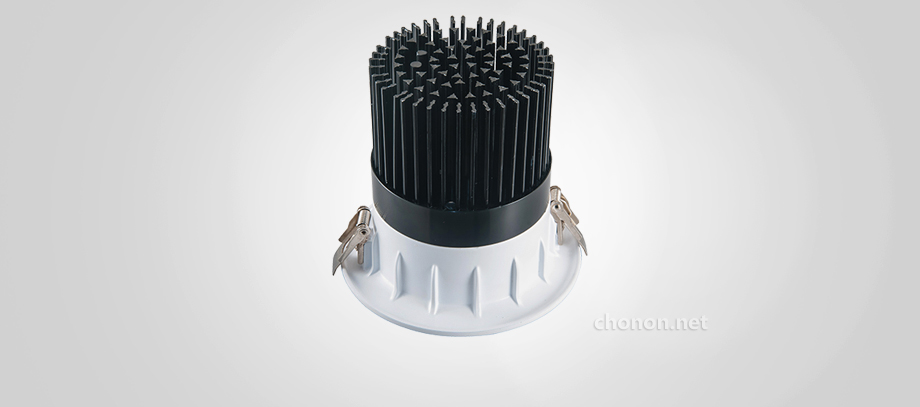

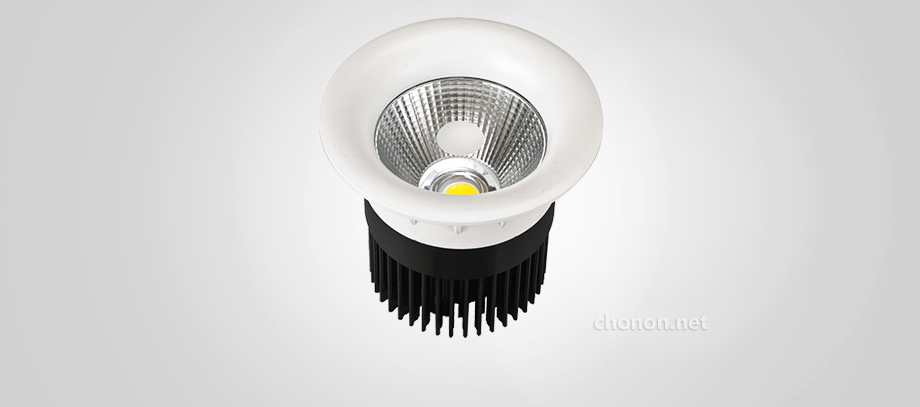

LED downlight-F Series
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●High power 40w, 45w downlight providing high lumen for high ceiling
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
●Die-cast aluminium body ensures excellent heat dissipation
●High efficiency aluminum reflector with glass
●High power 40w, 45w downlight providing high lumen for high ceiling
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, Office buildings, Hallways and Corridors, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter Ø (mm) |
Cutout Ø (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0430F |
150 |
130 |
135 |
30w |
2700 |
3000-6500K |
>80 |
>0.9 |
50x34x34 |
12 |
|
MQT-LED-0645F |
195 |
175 |
160 |
45w |
4050 |
3000-6500K |
>80 |
>0.9 |
64x43x40 |
12 |
Other wattages and lumens are available on request.
