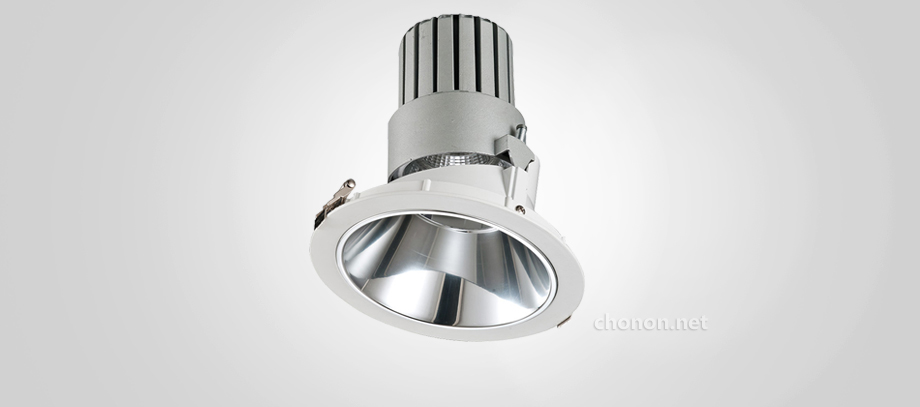

Features:
●Adjustable bracket with 30° tilt and 355° rotation
●Dark light reflector reduces glare and creates visual comfort
●Die-cast aluminium body ensures excellent heat dissipation
●Wall Wash: Flood beam
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, hotels, reception rooms, exhibition, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code |
Diameter Ø (mm) |
Cutout Ø (mm) |
Height (mm) |
Wattage |
Lumen @4000K (lm) |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQT-LED-0625E |
190 |
175 |
194 |
25w |
2125 |
3000-6500K |
>80 |
>0.9 |
44x44x43 |
8 |
|
MQT-LED-0630E |
190 |
175 |
194 |
30w |
2550 |
3000-6500K |
>80 |
>0.9 |
44x44x43 |
8 |
|
MQT-LED-0636E |
190 |
175 |
194 |
36W |
3060 |
3000-6500K |
>80 |
>0.9 |
44x44x43 |
8 |
