Features:

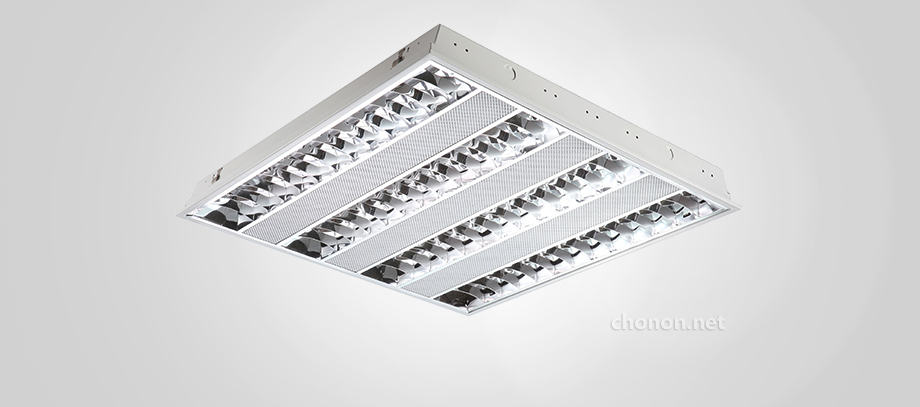

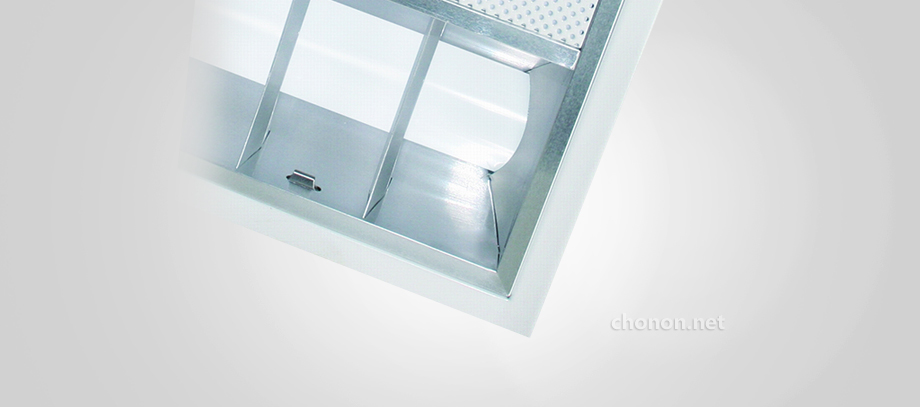

●Aluminum louver reflector with PC opal diffuser
●UGR<19 ideal for office area
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
Mounting: Recessed
Key Applications:
Office buildings, schools, universities, libraries, hospitals, etc.
Specification:
●Aluminum louver reflector with PC opal diffuser
●UGR<19 ideal for office area
●Body manufactured in cold-rolled steel with durable white powder coat finish
●LED options: Samsung as standard, and Philips, Osram & Epistar available on request
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available, Sensor and emergency batteries kit available on request
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
Mounting: Recessed
Key Applications:
Office buildings, schools, universities, libraries, hospitals, etc.
|
Photometric: |
Drawing: |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MQG-LED-409C |
595x595x60 |
36w |
2880lm |
3000-6500K |
>80 |
>0.9 |
65x63x15 |
2pcs |
|
MQG-LED-410C |
595x595x60 |
40w |
3200lm |
3000-6500K |
>80 |
>0.9 |
65x63x15 |
2pcs |
|
MQG-LED-412C |
595x595x60 |
48w |
3840lm |
3000-6500K |
>80 |
>0.9 |
65x63x15 |
2pcs |
Other lengths, wattages and lumens are available on request.
