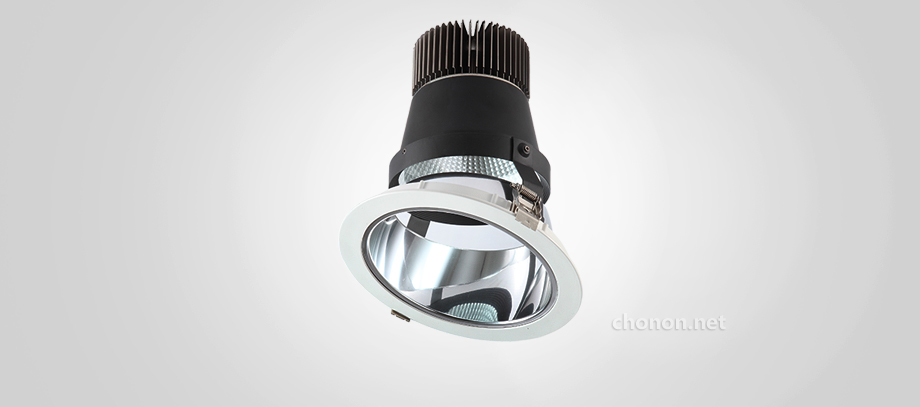

LED downlight-E Series/ Wall Wash
●Adjustable with 30° tilt and 355° rotation
●High efficiency aluminum reflector with glass
●Aluminum sheet heat sink in turbo shapes for fast cooling
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, hotels, reception rooms, exhibition, etc.
●Adjustable with 30° tilt and 355° rotation
●High efficiency aluminum reflector with glass
●Aluminum sheet heat sink in turbo shapes for fast cooling
●COB options: Citizen, Cree and Epistar
●Remote drivers: Non-dimmable, DALI or 1-10V on request
●IP20, Ta25, CRI>80
●Superior thermal performance, leading to a longer life
Installation:
Recess mounted
Key Applications:
Shopping Centers, Supermarkets, hotels, reception rooms, exhibition, etc.
|
Photometric: |
Drawing: |
 |
 |
|
Product Code
|
Diameter Ø (mm)
|
Cutout Ø (mm)
|
Height (mm)
|
Wattage
|
Lumen @4000K (lm)
|
CCT (K)
|
CRI
|
Power Factor
|
Carton Size (cm)
|
Qty/ctn (pcs)
|
|
MQT-LED-0515O
|
175
|
160
|
185
|
15w
|
1200
|
3000-6500K
|
>80
|
>0.9
|
57.5x39x34.5
|
12
|
|
MQT-LED-0625O
|
190
|
175
|
200
|
25w
|
2100
|
3000-6500K
|
>80
|
>0.9
|
62.5x62.5x41.5
|
12
|
|
MQT-LED-0830O
|
235
|
220
|
255
|
30W
|
2550
|
3000-6500K
|
>80
|
>0.9
|
51x51x45.5
|
8
|
Other wattages and lumensare available on request.
